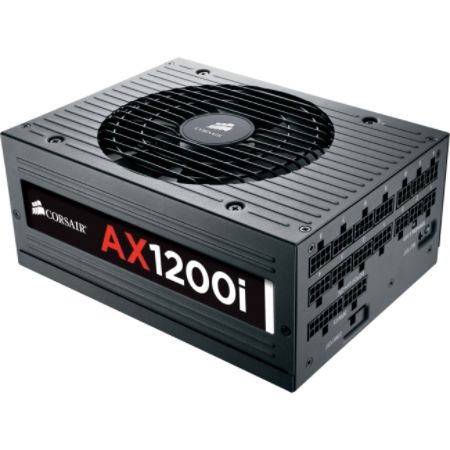

Corsair AX1200i Digital ATX Power Supply Item # 244566
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
244566
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The revolutionary AX1200i is the first desktop PC power supply to use digital (DSP) control and Corsair Link to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX1200i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS platinum efficiency, and clean, stable power.
Product Details
| Item # | 244566 |
| Manufacturer # | PZ7046 |
| number of fans | 1 |
| Product Series | AX |
| height | 3.4 in |
| Power Factor Correction (PFC) | Active |
| Output Voltage | 3.3 V DC @ 30 A; 5 V DC @ 30 A; 12 V DC @ 100.40 A; -12 V DC @ 800 mA; 5 V DC @ 3.50 A |
| width | 5.9 in |
| package contents | AX1200i Digital ATX Power Supply; Modular Cable Pack; Accessory Bag with Mounting Hardware, Cable Ties, and Case Badge; Installation Guide; Corsair Link Digital Interface Cable; Corsair Link USB Dongle |
| Output Power | 1.20 kW |
| depth | 7.9 in |
| Product Name | AX1200i Digital ATX Power Supply |
| Number of +12V Rails | 1 |
| Plug/Connector | On/Off Switch |
| manufacturer | Corsair |
| Input Voltage Range | 90 V AC to 264 V AC |
| weight | 8.80 lb |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | Corsair |
| protection type | Over Voltage; Under Voltage; Over Current; Short Circuit |
| Input Voltage | 110 V AC; 220 V AC |
| Input Voltage Type | AC |
| Output Current | +3.3V - 30 A ¦ +5V - 30 A ¦ +12V - 100.4 A ¦ -12V - 0.8 A ¦ +5VSB - 3.5 A |
| MTBF | 2000000 Hour |
| form factor | Internal |
| Receptacles | 1 x 24-pin ATX Motherboard; 2 x 4+4pin EPS12V; 6 x 6+2pin PCI-E; 12 x 4-pin LP4 Peripheral Device; 16 x Serial ATA; 2 x 4-pin SP4 Floppy Drive |
| Modular | Yes |
| warranty length | 7-year limited |
| model name | AX1200i |
| Efficiency | 92% |
